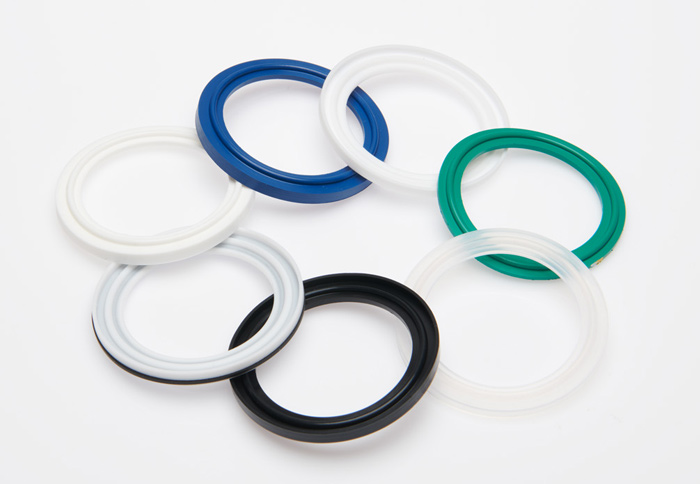

快装垫片, 1/2"

橡胶

¥ 1.00 ¥ 1.00 1.0 CNY

¥ 1.00

此组合不存在。

Contact us

30 天内可退款保证
订购请先联系我们，
一般产品2~7 天内到货。

For small size tubes

Class A: DN 6 to DN 8;

Class B: DN/OD 10.2 to DN/OD 17.2;

Class C: DN/OD 1/4" to DN/OD 3/4".

For standard size tubes

Class A: DN 10 to DN 200;

Class B: DN/OD 21.3 to DN/OD 219.1;

Class C: DN/OD 1" to DN/OD 6".

更多信息

CLASS A - Metric Standard Gaskets

Dimensions in millimeter

DN Sizes	Outside Diameter (d3)	Groove (d4)	Inside Diameter (d5)	Height (h)
6	25	20.2	≥6.2	4.5
8	25	20.2	≥8.2	4.5
10	34	27.5	≥10.2	5.5
15	34	27.5	≥16.2	5.5
20	34	27.5	≥20.2	5.5
25	50.5	43.5	≥26.2	5.5
32	50.5	43.5	≥32.2	5.5
40	50.5	43.5	≥38.2	5.5
50	64	56.5	≥50.2	5.5
65	91	83.5	≥66.2	5.5
80	106	97	≥81.2	5.5
100	119	110	≥100.2	5.5
125	155	146	≥125.2	5.5
150	183	174	≥150.2	5.5
200	233.5	225	≥200.2	5.5

CLASS B - DN/OD Metric Gaskets

Dimensions in millimeter

DN/OD Metric (d1)	Outside Diameter (d3)	Groove (d4)	Inside Diameter (d5)	Height (h)
10.2	25	20.2	≥7.2	4.5
13.5	25	20.2	≥10.5	4.5
17.2	25	20.2	≥14.2	4.5
21.3	50.5	43.5	≥18.3	5.5
26.9	50.5	43.5	≥23.9	5.5
33.7	50.5	43.5	≥29.9	5.5
42.4	64	56.5	≥38.6	5.5
48.3	64	56.5	≥44.5	5.5
60.3	77.5	70.5	≥56.5	5.5
76.1	91	83.5	≥72.3	5.5
88.9	106	97	≥84.5	5.5
114.3	130	122	≥109.9	5.5
139.7	155	146	≥134.7	5.5
168.3	183	174	≥163.3	5.5
219.1	233.5	225	≥214.1	5.5

CLASS C - DN/OD Inch Gaskets

Dimensions in millimeter

DN/OD Inch (d1)	Outside Diameter (d3)	Groove (d4)	Inside Diameter (d5)	Height (h)
1/4"	25	20.2	≥4.8	4.5
3/8"	25	20.2	≥8	4.5
1/2"	25	20.2	≥9.6	4.5
3/4"	25	20.2	≥16	4.5
1"	50.5	43.5	≥22.3	5.5
1 1/2"	50.5	43.5	≥35	5.5
2"	64	56.5	≥47.7	5.5
2 1/2"	77.5	70.5	≥60.4	5.5
3"	91	83.5	≥73.1	5.5
4"	119	110	≥97.6	5.5
6"	167	156.5	≥147.1	5.5

规格快装垫片, 1/2"

橡胶	FKM 或 EPDM 或 VMQ 或 PTFE
